System Board Connector (2523 Top View)

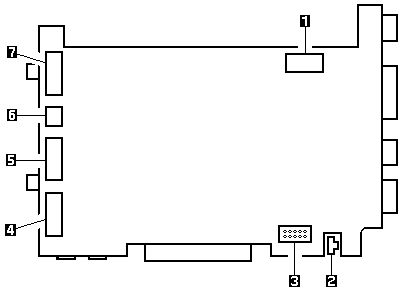

System Board Connector (Top View)

  1.  Power Switch Cable Connector
  2.  LCD Power Connector
  3.  Switch and LED Card Connector
  4.  Digitizer Cable Connector
  5.  LCD Cable Connector
  6.  Sub Battery Connector
  7.  Digitizer Cable Connector
