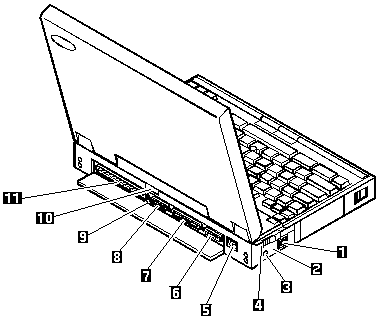

Rear View
Rear View
1 Telephony Jack
2 Microphone/Line-In Jack
3 Headphone Jack
4 Power Switch
5 Power Jack
6 Serial Connector
7 Parallel Connector
8 External-Display Connector
9 Reset Switch
10 Rear Infrared Port
11 System Expansion Connector
A multimedia portable expansion unit, port replicator, or
port replicator with PCMCIA can be connected to this interface
to support the following features.
- 16-bit AT-bus interface
- Serial port
- Parallel port
- Keyboard and mouse
- HDD connection
- LED control signals
- Visual signals
- Audio signals
- FDD signals
- PCMCIA signals
- Power controls
- Power line
