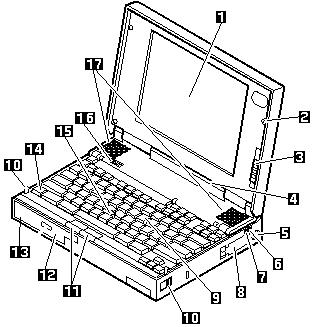

Front View
Front View
1 LCD
2 Built-in Microphone
3 Brightness Control
4 Status Indicator
See 'Status Indicators'
5 External Input Device Connector
6 Video-In Port
7 Video-Out Port
8 PCMCIA Slot
9 Keyboard
10 LCD and Keyboard Latch
11 Click Button
12 CD-ROM Drive
13 Front Infrared Port
14 Fn Key
15 TrackPoint III
16 Volume Knob
17 Built-in Speaker
