IBM-AUSTRIA - PC-HW-Support    30 Aug 1999

ThinkPad Common / Option FRU P/N

1.  When you replace the AC adapter or the Quick Charger with a new one, use the one for the country you are in  even if the system is from different country.
2.  The warranty for the system unit is not applied to all options.

	FRU P/N
Audio Cable	66G5180
Car Battery Adapter
( 48G9203 label sealed)	49G1148
Car Battery Adapter
( 66G9984 label sealed)	84G4359
Diskette Drive Attachment Unit	66G5069
IC DRAM CARD 2MB	07G1414
IC DRAM CARD 4MB	07G1415
IC DRAM CARD 8MB	07G1416
IC DRAM CARD 16MB	66G0094
Microphone	66G7871
PS/2 Miniature Mouse	95F5723
Port Replicator
(Model-II 760/765/765L)	66G3575
Port Replicator with PCMCIA
(Model-I 760/765/765L)	66G3574
Quick Charger (3-pin)	66G2815
For Japan (2-pin)	66G2816

Model Unique Options

Models 355x, 360x, 370C

	FRU P/N
4MB IC DRAM CARD (no parity)	84G5724
8MB Basic IC DRAM CARD (no parity)	84G5725
16MB IC DRAM CARD (no parity)	84G5726
Internal Modem Card
(U.S./Canada/Latin America)	84G5917
Telephone Cable
(U.S./Canada/Latin America)	84G8254
Telephone Wall Plug	85G2367

Model 370C

	FRU P/N
Audio Card	66G5037
4MB IC DRAM CARD (no parity)	84G5724
8MB Basic IC DRAM CARD (no parity)	84G5725
16MB IC DRAM CARD (no parity	84G5726
Diskette Drive (4-mode)
Supported in U.S. only.	66G5060

Model 750x

	FRU P/N
AC Adapter (35 W, 3-pin)	85G1952
For Japan (2-pin)	85G6669
AC Adapter (40 W, 3-pin, U.S. only)	84G4320
AC Adapter (40 W, 3-pin)	49G2196
For Japan (2-pin)	49G2197

Model 755C, 755Cs

	FRU P/N
DIMM 4MB	84G4323
DIMM 8MB	84G6545
DIMM 16MB	84G4324
DIMM Adapter Card	84G4322
Diskette Drive (4-mode)
Supported in U.S. only.	66G5060

Numeric Keypad

	FRU P/N
Belgian	95F5741
Canadian French	95F5466
Danish	95F5467
Dutch	95F5467
French	95F6313
German	95F6314
Greek	95F5467
Hebrew	95F5741
Icelandic	95F5467
Italian	95F6316
Japanese	79F6401
Norwegian	95F5467
Spanish	95F6315
Swedish/Finnish	95F5468
Swiss/French	95F5711
Swiss/German	95F5715
Turkish	95F5467
U.K. English	95F5741
U.S. English	95F5741

Accessories

	FRU P/N
Keyboard/Mouse Cable	54G0444

Tools

	FRU P/N
Tri-Connector Wrap Plug	72X8546
PC Test Card	35G4703
Screwdriver Kit	95F3598
ThinkPad 750Ce	82G3891
Hardware Maintenance Diskette
(This diskette is common for
all models of ThinkPad.)

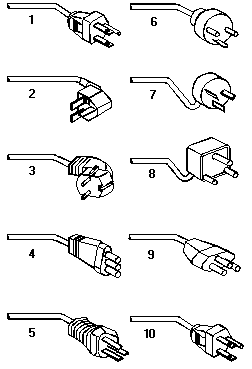

Power Cords

  Use the power cord certified for your country.

Ref.	Country	30/40W	35W
1	Colombia, U.S., Venezuela	13F9959	25H2207
1	Japan, 2-pin	6454377	85G6665
1	Japan, 3-pin	65F0031
2	Hong Kong, Singapore, U.K.	14F0033	25H2215
3	France, Germany, Spain	13F9979	25H2209
4	Italy	14F0069	25H2223
5	Australia, New Zealand	13F9940	25H2205
6	Denmark	13F9997	25H2211
7	Israel	14F0087	25H2225
8	Bangladesh, Pakistan, Sri Lanka, South Africa	14F0015	25H2213
9	Switzerland	14F0051	25H2221
10	Thailand	1838574	25H2219

NOTE:

•   Models 370C, 755C, and 755Cs do not support the  30W AC adapter.
•  The 30/40W cord is 1.8m (6 ft.) long, the 35W cord is 0.15m (6-Inch).
