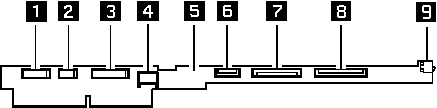

Interposer Card - All Models (Front View)



Interposer Card - All Models (Front View)

  1.  LCD Connector, Color
  2.  LCD Connector, Pen
  3.  LCD Connector, Monochrome and Color
  4.  LCD Power Connector, Color
  5.  Status Indicator Connector
  6.  Keyboard TrackPoint II Connector
  7.  Keyboard Signal Connector
  8.  Keyboard Signal Connector
  9.  LCD Open Detect Switch
