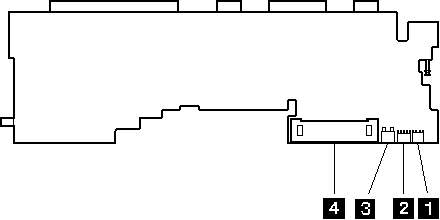

System Board (Bottom View)



System Board (Bottom View)

  1.  Power-On Password Connector
  2.  Backup Battery Connector
  3.  Standby Battery Connector
  4.  IC DRAM Card Connector
  5.  Processor Card Connector (750Ce, 755C, 755Cs)
