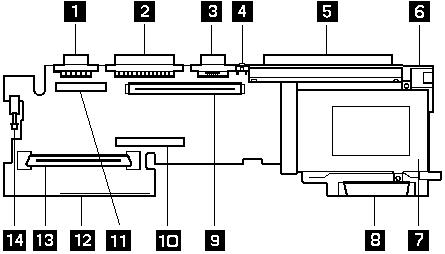

System Board (Top View)

1.  Power Switch
2.  Modem Card Connector (355x, 360x)
3.  Serial Connector
4.  Audio Card Connector
5.  Speaker Connector (370C only)
6.  Parallel Connector
7.  Interposer Card Connector
8.  External Display Connector
9.  Reset Pushbutton
10.  System Expansion Connector

      Model 355x does not have this connector.

11.  External Input Device Connector
12.  Hard Disk Drive Connector
13.  PCMCIA Slot
14.  DC / DC Card Connector
15.  IC DRAM Card Connector
16.  Diskette Drive Connector
