Locations (750P, 360P, 360PE)

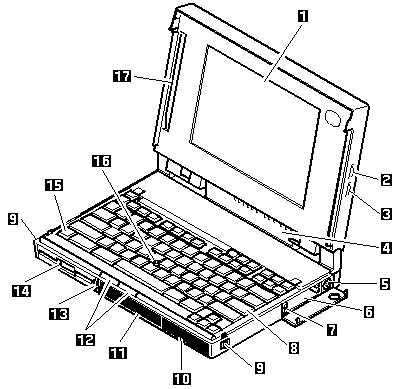

System Front View - (750P, 360P, 360PE)

  1.  Convertible LCD
  2.  Contrast Control
  3.  Brightness Control
  4.  Status Indicator
  5.  External Input Device Connector
  6.  PCMCIA Slot
  7.  PCMCIA Release Lever
  8.  Keyboard
  9.  LCD and Keyboard Latch
  10.  Hard Disk Drive Compartment
  11.  Battery Compartment
  12.  Click Buttons
  13.  Diskette-Eject Button
  14.  Diskette Drive
  15.  Fn Key
  16.  TrackPoint II
  17.  Stylus Pen
