IBM-AUSTRIA - PC-HW-Support    30 Aug 1999

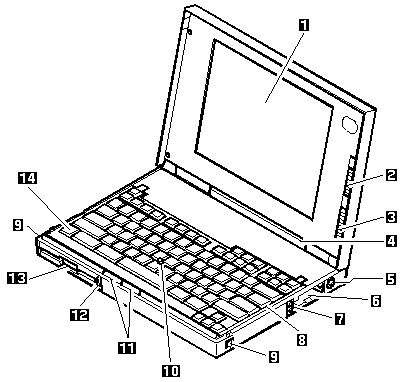

Locations (750, 750Cx, 755Cx, 370C, 360x, 355x)

1.  LCD
2.  Contrast Control

   NOTE: The Model 360 does not have a contrast control.
    The Model 755C has one of two types of LCD:
    one with a contrast control and one without.

3.  Brightness Control
4.  Status Indicator

    See 'Status Indicators'

5.  External Input Device Connector
6.  PCMCIA Slot
7.  PCMCIA Release Lever
8.  Keyboard
9.  LCD and Keyboard Latch
10.  TrackPoint II
11.  Click Button
12.  Diskette-Eject Button
13.  Diskette Drive
14.  Fn Key
