2110 Backup Battery

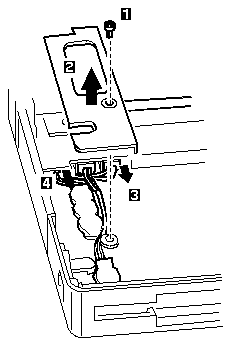

2110 Backup Battery
2105 Standby Battery
Model 750x
2 Standby Battery
3 Backup Battery
Models 370C, 755C, and 755Cs
3 Standby Battery
4 Backup Battery
NOTE:
When replacing the batteries, make sure the batteries
are seated correctly.
Make sure the insulator cover 1 is in the correct position
by sliding it end to end.
| Step |
Location (Quantity) |
Length |
| 1 |
cover (1) |
4 mm |
NOTE: Make sure you use the correct screw. Screw Size Chart
