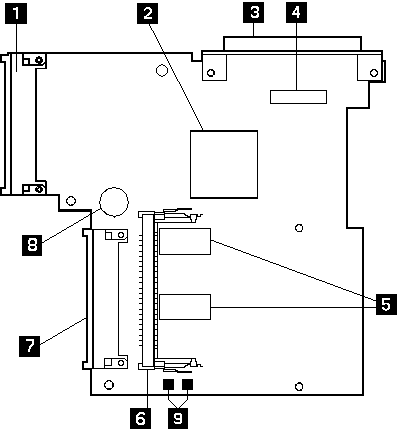

Bottom System Board (Bottom View)
Bottom System Board (Bottom View)
1 PCMCIA Connector
2 Processor
3 System Expansion Connector
4 Modem Connector
5 Random Access Memory
6 SO-DIMM Connector
7 Hard Disk Drive Connector
8 RTC Battery
9 Power-On Password Bypass Pads
