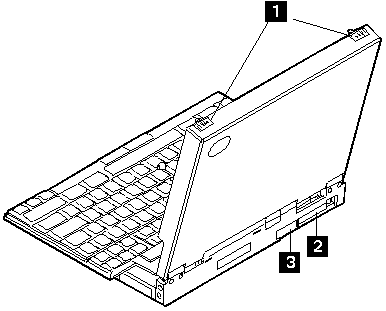

System (Rear View)
System (Rear View)
1 Latches
2 System Expansion Connector
3 Docking Door
A MultiPort II or Dock II
can be connected to this interface
to support the following features:
- 16-bit AT-bus interface
- Serial port
- Parallel port
- Keyboard and mouse
- Hard disk drive connection
- LED control signals
- Video signals
- Audio signals
- Diskette drive
- PCMCIA
- Power controls
- Power line
