Pin Assignments for I/O Connectors

Dell™ Latitude™ D600 Service Manual

  USB Connector

  Video Connector

  Parallel Connector

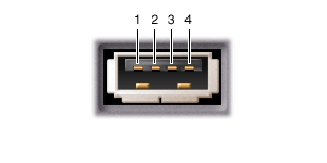

USB Connector

Pin

Signal

1

USB5V+

2

USBP–

3

USBP+

4

GND

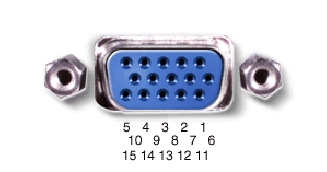

Video Connector

Pin

Signal

Pin

Signal

1

CRT_R

9

5V+

2

CRT_G

10

GND

3

CRT_B

11

MONITOR_DETECT–

4

NC

12

DDC_DATA

5

GND

13

CRT_HS

6

GND

14

CRT_VS

7

GND

15

DDC_CLK

8

GND

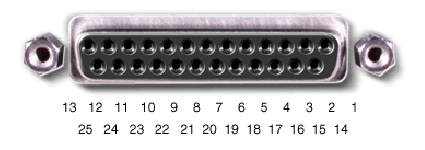

Parallel Connector

Pin

Signal

Pin

Signal

1

STROBE–

10

ACK–

2

PD0

11

BUSY

3

PD1

12

PE

4

PD2

13

SLCT

5

PD3

14

AFD/3M–

6

PD4

15

ERROR–

7

PD5

16

INIT–

8

PD6

17

SLIN–

9

PD7

18-25

GND
