Bluetooth™ Card

Dell™ Latitude™ D600 Service Manual


CAUTION: Before performing the following procedures, read the safety instructions in your System Information Guide.
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such as the back panel) on the computer.
  1. Follow the instructions in "Preparing to Work Inside the Computer."

  2. Remove the keyboard.

  3. Remove the display assembly.

  4. Remove the palm rest.

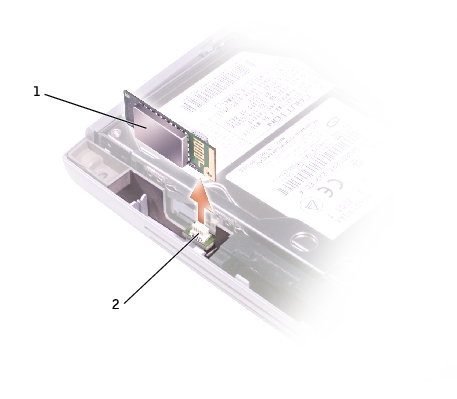

  5. Remove the Bluetooth card by pulling it straight up from the system board connector.

1

Bluetooth card

2

system board connector
