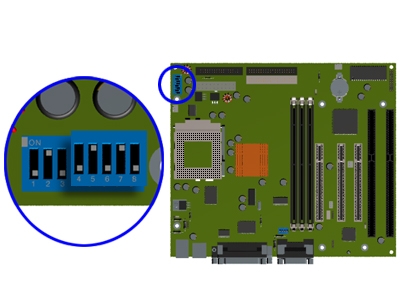

5304 System Board
Bus Speed I Multiplier I Voltage Settings
To Clear CMOS, remove battery, wait 5 seconds, then re-insert.
| Front Side Bus CPU & SDRAM (switch 1) | ||||||
 |
||||||
| CPU | SDRAM | PCI | 1 | 2 | 3 | 4 |
| 66.8 | 66.8 | 33.4 | On | On | On | Off |
| 75 | 75 | 30 | Off | On | On | Off |
| 83.3 | 83.3 | 33.3 | On | Off | On | Off |
| 95 | 95 | 31.7 | Off | Off | On | Off |
| 100* | 100 | 33.4 | On | On | Off | Off |
| * Default Configuration |
| Multiplier | |||
|
|||
| SW2 | 1 | 2 | 3 |
| X1.5 | Off | Off | Off |
| X2 | On | Off | Off |
| X2.5* | On | On | Off |
| X3 | Off | On | Off |
| X3.5 | Off | Off | Off |
| X4 | On | Off | On |
| X4.5 | On | On | On |
| X5 | Off | On | On |
| X5.5 | Off | Off | On |
| *Default Configuration |
| Voltage Switch Settings | ||||||
|
||||||
| SW2 | 4 | 5 | 6 | 7 | 8 | Processor |
| 1.3V | Off | Off | Off | Off | On | |
| 1.4V | Off | On | Off | Off | On | |
| 1.5V | Off | Off | On | Off | On | |
| 1.6V | Off | On | On | Off | On | |
| 1.7V | Off | Off | Off | On | On | |
| 1.8V | Off | On | Off | On | On | |
| 1.9V | Off | Off | On | On | On | |
| 2.0V | Off | On | On | On | On | |
| 2.1V | On | Off | Off | Off | Off | |
| 2.2V | Off | On | Off | Off | Off | K6-2 /333/350/380/400 |
| 2.3V | On | On | Off | Off | Off | |
| 2.4V | Off | Off | On | Off | Off | K6-2 /450 |
| 2.5V | On | Off | On | Off | Off | |
| 2.6V | Off | On | On | Off | Off | |
| 2.7V | On | On | On | Off | Off | |
| 2.8V | Off | Off | Off | On | Off | Pentium |
| 2.9V | On | Off | Off | On | Off | M II-366 (Default Setting) |
| 3.0V | Off | On | Off | On | Off | |
| 3.1V | On | On | Off | On | Off | |
| 3.2V | Off | Off | On | On | Off | |
| 3.3V | On | Off | On | On | Off | |
| 3.4V | Off | On | On | On | Off | |
| 3.5V | On | On | On | On | Off | |
