Deskpro EP/SB

Configuring System Board

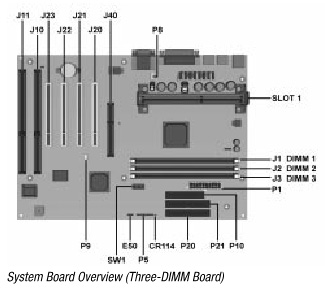

• Deskpro EP Three DIMM System Board

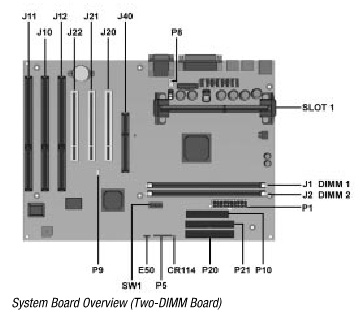

• Deskpro EP Two DIMM System Board
• Deskpro EP Switch Settings

Connectors, Jumpers, and Switches
Item	Description	Item	Description
CR114	AUX LED	J40	AGP Video Graphics Slot
E50	CMOS Header	P1	Power Supply Connector
J1	DIMM 1 Expansion Slot	P5	Power Switch and LED Connector
J2	DIMM 2 Expansion Slot	P8	Chassis Fan Connector
J10	ISA Expansion Slot	P9	Wake on LAN Header
J11	ISA Expansion Slot	P10	Diskette Drive Connector
J12	PCI/ISA Dual Expansion Slot (combo)	P20	IDE Connector (primary)
J20	PCI Expansion Slot	P21	IDE Connector (secondary)
J21	PCI Expansion Slot	Slot 1	Processor Connector
J22	PCI Dual Expansion Slot (combo)	SW1	Processor Speed and Feature Switch

Deskpro EP Switch Settings

Top of page

E-2 1 - 4 External Battery Connector 5 - 6 External Battery Jumper 6 - 7 Internal Battery Jumper

SW1 Settings Note: As of January 1, 1999, all 300-MHz and faster Celeron and Pentium processors are shipped with the processor speeds preset. This preset processor speed will override any switch settings on the system board. Processor Speed (66MHz Speed) S1 S2 S3 S4 S5 * * 233 MHz * OFF OFF ON ON * * 266 MHz * ON ON OFF ON * * 300 MHz * ON OFF OFF ON * * 333 MHz * OFF ON OFF ON * * 366 MHz * OFF OFF OFF ON * * 400 MHz * ON ON ON OFF * * Processor Speed (100 MHz Bus Speed) S1 S2 S3 S4 S5 * * 350 MHz * OFF OFF ON ON * * 400 MHz * ON ON OFF ON * * 450 MHz * ON OFF OFF ON * * 500 MHz * OFF ON OFF ON * * 550 MHz * OFF OFF OFF ON * * 600 MHz * ON ON ON OFF * * *Power -On Password Disable Password: S1 On, Enable Password (Default Setting): S1 Off
