Deskpro DT/MT PCI

Identifying Backplane




Backplane Jumpers 3x3
Top of page
Function
Description
Designator
Standard ISA Slots ISA Socket J5, J7
Shared ISA/PCI Slot ISA Socket J3
Shared ISA/PCI Slot PCI Socket J4
Compaq Option Slot ISA Socket J2
System Board 300 pin connector J1
Diskette Drive 34 pin connector P3
IDE Drive 40 pin connector  P4, P5
Speaker 4-pin/key 3 P7
Power and Hard Drive LED 6 Pin Header, Key 3 P6
Display Data Channel 5 Pin Header, Key 2 P8
Audio Pickup J20
Power Supply P1, P2

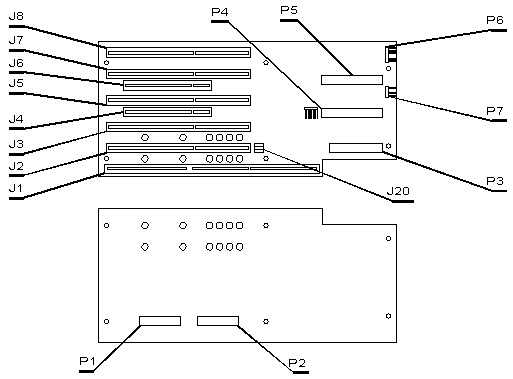

Backplane Jumpers 4x4
Top of page
Function
Description
Designator
Standard ISA Slots ISA Socket J7, J8
Shared ISA/PCI Slots ISA Socket J3, J5
Shared ISA/PCI Slots PCI Connector J4, J6
Compaq Option Slot ISA Socket J2
System Board 300 pin connector J1
Diskette Drive 34 pin connector P3
IDE Drive 40 pin connector P4, P5
Speaker 4-pin header, key 3 P7
Power and Hard Drive LED 6 Pin Header, Key 3 P6
Display Data Channel 5 Pin Header, Key 2 P8
Audio Pickup J20
Power Supply P1, P2

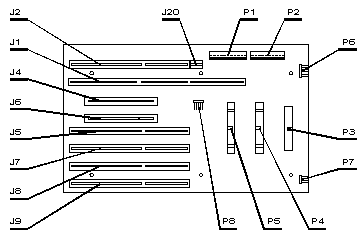

Backplane Jumpers 5x5
Top of page
Function Description Designator
Standard ISA Slots ISA Socket J7, J8, J9
PCI Slot PCI Connector J4
Shared ISA/PCI Slots ISA Connector J5
  PCI Connector J6
Compaq Option Slot ISA Socket J2, J20
System Board 212 pin connector J1
Diskette Drive 34 pin connector P3
IDE Drive 40 pin connector P4, P5
Speaker 4-pin header, key 3 P7
Power and Hard Drive LED 6 Pin Header, Key 3 P6
Display Data Channel 5 Pin Header, Key 2 P8
Power Supply   P1, P2
Audio Pickup   J2
