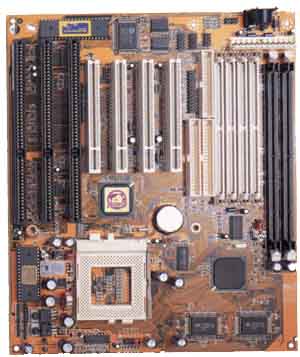

Model: AM-435TX |
||
Intel™ 430TX PCI Motherboard |
||
   |
||
|
|
|
Model: AM-435TX |
||
Intel™ 430TX PCI Motherboard |
||
|
||
| Technical Specifications |
| CPU |
| PentiumŪ Processor at 75-233MHz. Intel™ PentiumŪ P54C/P55C (MMX). Cyrix™/IBM™ 6x86/6x86L, MX. AMD™ K5/K6. |
| Cache Memory |
| Supports on board 512k pipelined burst L2 cache. |
| Chipset |
| Intel™ 430TX chipset. |
| System Memory |
| Supports 64M bit (16Mx4, 8Mx8, 4Mx16)
technology DRAM/SDRAM. Provides four 72-pin SIMM auto banking in multiple configuration up to 256 MB. Provides two 168-pin DIMM to support SDRAM/EDO/FPM DRAM up to 128MB. |
| Expansion Slots |
| Four PCI local bus slot and three ISA
bus slots. All PCI slots support bus mastering mode. |
| Power Management |
| BIOS supports NCR810 SCSI BIOS firmware and green feature function. |
| On Board I/O |
| On board PCI bus master IDE interface
supports four IDE devices with two channels, which do not
need device driver for software application. PCI IDE
controller supports Ultra DMA/33 at maximum transfer rate
of 33MB/sec and bus master IDE DMA mode 2. On board super
multi I/O chip supports two serial ports with 16550 fast
UART compatible, one parallel port wih ECP/EPP
capabilities, and one floppy disk drive interface. Supports PS/2 mouse connector and USB interface. |
| Other Features |
| Switching power provides CPU core voltage from 2.5V to 3.5V. |
