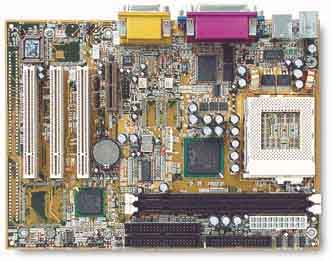

Model: AM-922

Intel® 810E Chipset Micro ATX Motherboard


Technical Specifications

- Intel® Pentium® III / Celeron (66/100/133Mhz Front Side Bus) (PGA 370 Type).
   - 300/333/350/366/400/433/450/466/500/533/550/600/650/667/700MHz or above.

Chip Set
   - Intel® 810E.
   - Intel® Firmware Hub (4M bit).
   - Support PnP, APM, ACPI, ATAPI, DMI.
   - IDE AUTO LBA Mode Supports HDDs over 8.4GB.
   - Trend Micro ChipAway Virus Protection.

      - L2 Cache is CPU Built-in.
  - Size up to 512MB.
   - Two 168-pins DIMMs.
   - DIMMs Depth of 1MB, 2MB, 4MB, 8MB, 16MB and 32MB.

On Chip Graphic Engine
   - Integrated 64-bit 3D/2D Graphic Engines (Intel 752 Core)
   - Hardware Motion Compensation for S/W MPEG2 Decode (DVD).
   - Dynamic Video Memory Technology.
   - Integrated 24-bit 230MHz RAMDAC.
   - Resolution up to 1600 x 1200
   - DirectX6 & OpenGL API Support
   - Win 95vxd, Win98/NT5 Mini Port Driver Support.

     On Board I/O
   - Support Two PCI Enhanced IDEs PIO Mode 3, Mode 4 and Ultra DMA 33
     Channels (Optional Ultra DMA 66 & Ultra DMA 66 Cable). Twin Headers for Four
     IDE Devices Including IDE HDDs and CDROMs.
   - Support Two FDDs of 360KB, 720KB, 1.2MB, 1.44MB or 2.88MB.
   - One ECP/EPP Parallel Port, Two 16550A UART Serial Ports, Two USB Ports,
      PS/2 Mouse Port, PS/2 Keyboard Port.

On Board Sound
- Integrated AC97 Controller with Standard AC97 Codec.
   -  PnP, Full-Duplex, Sound Blaster and Direct Sound Ready.
   -  Line-in, Line-out, Mic-in and MIDI/Game Port.

Crystal PCI Sound (Optional)
   - Crystal CS4280/81 AC97 Audio Controller
   - Full DOS Game Support (DDMA, PC/PCI, CLS)
   - PCI 2.1 BUS Master, Hardware Sound Accelecation
   - Full Duplex, Sound Blaster Compatible.
   - Crystal 3D Enhancement, PNP, Software Wave Table.
   - Win95/98/NT Driver Ready.

Hardware Monitoring (Optional)
   - Voltage, Temperature, Fan Speed Monitoring, CPU Over Heat Protection.
Expansion Slots
- Three PCI Bus Slots.
   - One ISA Bus Slot (Optional).
   - One Audio Modem Riser (AMR).

Plug and Play
   - Plug and Play Specification 1.1.
   - Plug and Play for DOS®, Windows®  3.x, and Windows® 95.
   - PC97/98 Ready, PC99 Color Connector.
Power Management
        - Support SMM, APM and ACPI.
  - Comply to Energy Star “Green PC” Program.
  - Supports WAKE-ON-LAN (WOL).
  - Suspend to RAM (STR) (optional).

   - PCI 2.1 Compliant.
   - On Board VRM 8.4.
   - On-board Lithium Battery.

  - CPU Speed Jumperless.
   - Alarm Wake-up
   - Bundle "PC-cillin 6" Anti Virus Software.
Board Size
    - 173mm x 244mm, Micro ATX Form Factor.
