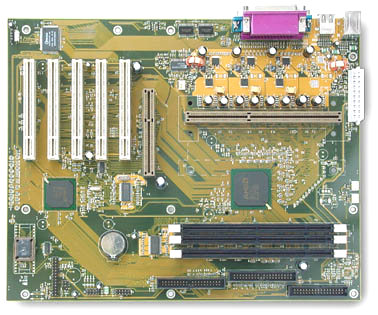

Model: AM-976

AMD® 750 Chipset ATX Motherboard


Technical Specifications

- AMD® Althon® (K7) (200MHz DDR Front Side Bus)  (Slot A).
Chip Set
- AMD-750™  AGP Chipset.
  -  2M Flash EPROM (Support PnP, APM, ACPI, ATAPI, DMI).
  - IDE AUTO LBA Mode Supports HDDs over 8.4GB.
  - Trend Micro ChipAway Virus Protection.
      - L2 Cache is CPU Built-in.
- Size up to 768MB.
  - Three 168-pins DIMMs.

  - Synchronous DRAM (SDRAM).

On Board I/O
  - Support Two PCI Enhanced IDEs PIO Mode 3, Mode 4 and Ultra DMA 33/66
    Channels   (Optional Ultra DMA 66 Cable). Twin Headers for Four IDE Devices
    Including IDE   HDDs and CDROMs.
  - Support Two FDDs of 360KB, 720KB, 1.2MB, 1.44MB or 2.88MB.
  - One ECP/EPP Parallel Port, Two 16550A UART Serial Ports, Four USB Ports,
    PS/2   Mouse Port, PS/2 Keyboard Port.
Hardware Monitoring (Optional)
   - Voltage, Temperature, Fan Speed Monitoring, CPU Over Heat Protection.
Expansion Slots
- Five PCI Bus Slots.
  - One Accelerated Graphics Port (AGP).
Plug and Play
   - Plug and Play Specification 1.1.
   - Plug and Play for DOS®, Windows®  3.x, and Windows® 95.

   - PC97/98 Ready, PC99 Color Connector.
Power Management
      - Support SMM, APM and ACPI.
   - Comply to Energy Star “Green PC” Program.
  - Supports Modem Ring-in Wake Up.
   - PCI 2.1 Compliant.
  - AGP 1.0.

   - On Board VRM.
   - On-board Lithium Battery.

  - Auto Detect Processor Voltage.
  - Auto Select CPU Frequency Multiplier.
  - Alarm Wake-up.
  - Bundle PC-cillin 6” Anti Virus Software.
Board Size
- 245mm x 305mm, ATX Form Factor.
