BCM 540/541 User-Accessible Connectors and Jumpers
System Board Connectors
Name |
Reference |
J1 |
(FLOPPY) Floppy disk drive interface header |
J6, J3 |
(IDE PRI & IDE SEC) IDE Hard disk drive interface headers |
J5 |
Power supply connector header |
J7 |
PCI/ISA expansion riser connector |
J18 |
(FEATURE) VESA Feature connector |
J22 |
(SPEAKER) PC Speaker connector |
J17 |
(WAVE CONN) Wavetable upgrade connector |
J14 |
(GAME) Game (Joystick) and MIDI port connector |
J11 |
(MODEM IN) Modem input/output conn. for Speakerphone |
J10 |
(CD IN) CD Audio input connector |
J21 |
(IR REMOTE) Infrared remote module connector |
J12 |
(IRDA) IrDA module connector |
J8 |
(FAN) CPU Cooling Fan connector |
J16 |
(POWER LED) Front panel Power LED connector |
RESET |
System Reset connector |
SLEEP |
Power management connector |
HDLED |
Hard disk drive activity indicator LED |

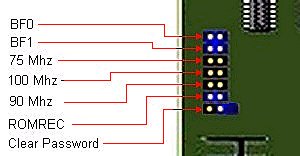

Front Panel Connectors and Jumpers

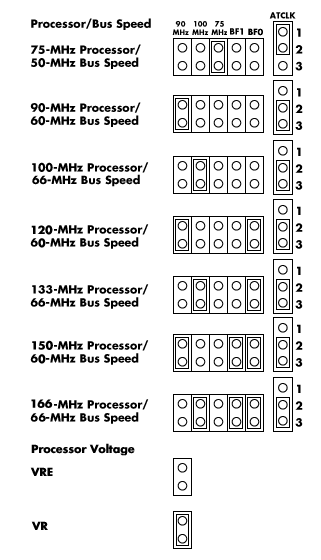

CPU Jumper Settings
Note
Although settings for 150 MHz and 166MHz are listed here, not
all configurations will support this configuration. The BF0 jumper
must be present to support the 150 and 166 MHz processor speed.
The NEC Ready 7022, 9022, 9522, and 9532; Powermate V75, V90,
V100, and V133 systems only support up to a 133 MHz Pentium processor.
Document Information
KBID# 058617, Last Reviewed: November 11, 1999
