Additional Images:
Front Panel Diagram
Another Motherboard Image

Found in the following systems:
Compaq - 5wv232, 5wv252, 5wv254, 5wv257, 5wv260, 5wv261, 5wv270, 5wv271, 5wv275, 5wv277, 5wv280, 5wv282, 5wv285, 5wv294, 5wv295, 5wv296, 5wv297

Maintenance and Service Guide:
None

Retail Board:

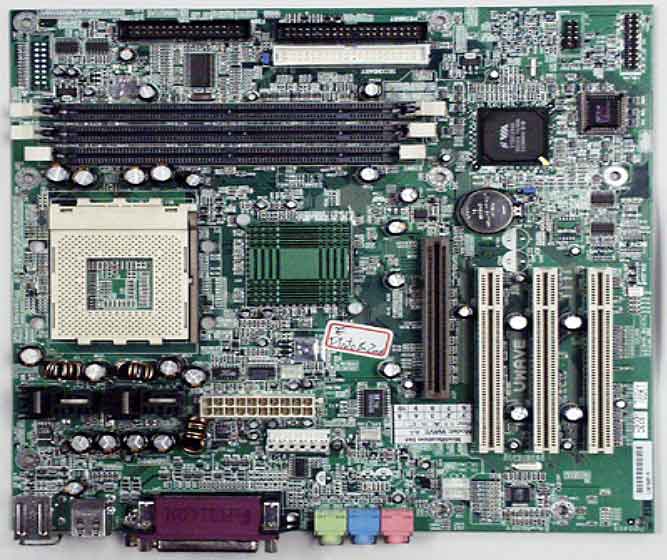

This is an OEM FIC AZ31 motherboard.
There is no retail information availible

Notes:
The bios program has been altered to a Compaq specific version. It is not recommended to flash back to the original. If anyone does this successfully please notify us by email.

- .
