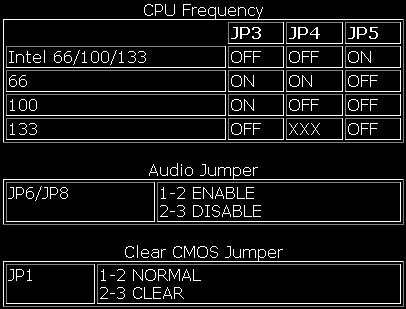

Additional Images: CPU Jumper Selections
BMW Front Panel Jumpers - Version A (From Presario 7594)

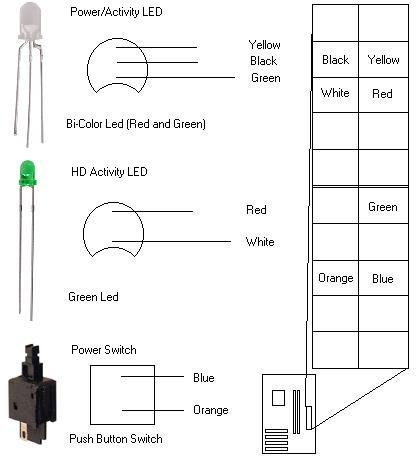

BMW/BMW2 Front Panel Jumpers - Version B
Found in the following systems: 5007US, 5008SR, 5008US, 5009CL, 5009SR, 5010US, 5080US, 4100CA, 5100US, 5104US, 5107US, 5127SR
Maintenance and Service Guide: None
Retail Board: This motherboard is an OEM version of the Mitac 6513WU motherboard http://www.mitac.com/micweb/products/tyan/6513wu/6513wu.htm Notes: The bios program has been altered to a Compaq specific version. It is not recommended to flash back to the original. If anyone does this successfully please notify us by email.
