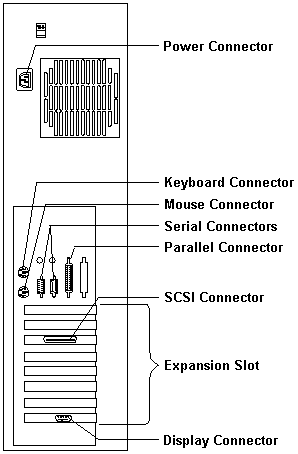

Input/Output Connectors



Input/Output Connectors




Keyboard Connector The keyboard cable connects here.


Mouse Connector The mouse cable connects here.
This connector is sometimes called the auxiliary-device port.


Serial Connectors The server has two 9-pin serial connectors A (COM1) and B (COM2) are provided.
Serial signal cables for modems or other serial devices connect here. To attach 25-pin signal cables, you must use a 9-pin-to-25-pin adapter cable.


Parallel Connector The server has one 25-pin parallel port.
A signal cable for a parallel device, such as a printer, connects here.


SCSI Connector: Attach external SCSI devices here.
Display Connector The display signal cable connects here.
