System Board (2603)

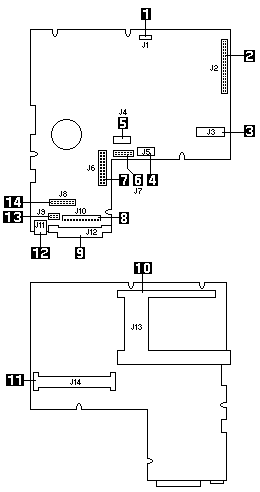

System Board
  1.  Pointing Device Connector
  2.  Hard Disk Drive Connector
  3.  Keyboard Connector
  4.  Sense Connector
  5.  Wobble Connector
  6.  LED Connector
  7.  Power Card Connector
  8.  LCD Data Connector
  9.  Parallel Port Connector
  10.  PCMCIA Connector
  11.  IC DRAM Card Socket
  12.  External Display Connector
  13.  LCD Power Connector
  14.  Diskette Drive/Serial Port Connector
