System Board (8551 Bottom View)

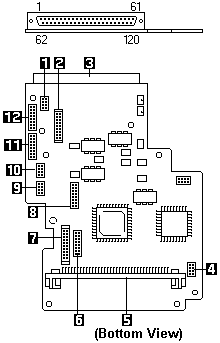

System Board (Bottom View)
  1.  I/O Panel Connector
  2.  Voltage Converter Connector
  3.  System Expansion Port (120-pin)
  4.  Password-Override Connector
  5.  Memory-Module Kit Connector
  6.  Hard-Disk Drive Connector
  7.  Voltage Converter Connector
  8.  Hard-Disk Drive Connector
  9.  Diskette-Drive Connector
  10.  Diskette-Drive Connector
  11.  I/O Panel Connector
  12.  I/O Panel Connector
