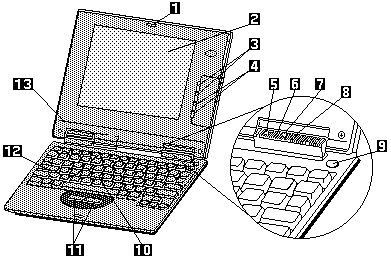

Front View (WP z50 - 2608)



Front View
  1.  LCD cover release latch
  2.  LCD display
  3.  Brightness control buttons
  4.  Contrast control buttons
  5.  Notification button
  6.  Notification LED
  7.  Microphone button
  8.  External Power/Charge status LED
  9.  Power button
  10.  TrackPoint
  11.  TrackPoint buttons
  12.  Keyboard
  13.  Built-in microphone
