Bezel Asm (TP 240 - 2609)

•  Battery Asm

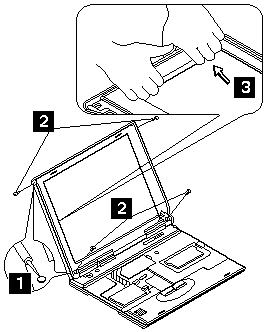

1.  Remove the screw cap covers.
2.  Remove the screws as shown.


3.  Gripping as shown, remove the LCD bezel.

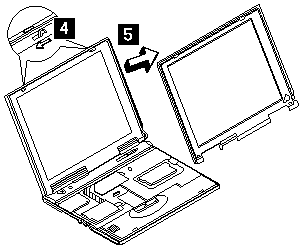

4.  The LCD latches must be opened as shown to remove the bezel.


5.  Remove the bezel from the LCD unit.

Step	Size (Quantity)	Head & Color	Torque
2	M2.5 x 5 (2)	Flat head, black	2.5 kgf-cm
2A	M2.5 x 5 (2)	Flat head, black	1.5 kgf-cm

Note: Make sure you use the correct screw for replacement.
