IBM-AUSTRIA - PC-HW-Support    30 Aug 1999

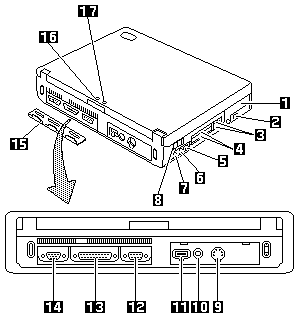

Rear View (TP 380XD, 385XD, 380Z - 2635)

1.  Hard disk drive
2.  Security keyhole
3.  PC Card eject buttons
4.  PC Card slots
5.  Volume control
6.  Microphone jack/Line-in jack
7.  Headphone jack
8.  Power switch
9.  External-input device connector
10.  Power jack
11.  Universal serial bus (USB) port
12.  Serial connector
13.  Parallel connector
14.  External-monitor connector
15.  Connector cover
16.  External suspend mode indicator
17.  External battery indicator
