IBM-AUSTRIA - PC-HW-Support    30 Aug 1999

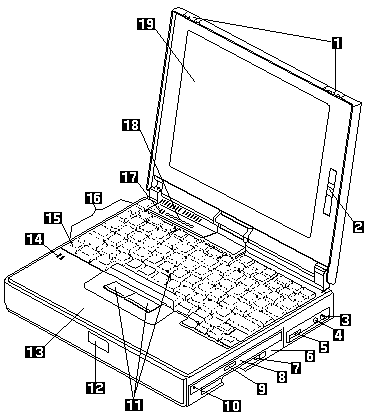

Front View (2635-380/385)

1.  LCD Latch
2.  Contrast Control (DSTN model)
    Brightness Control (TFT model)
3.  Headphone jack
4.  Microphone/line-in jack
5.  Volume control
6.  Diskette drive
7.  Diskette eject button
8.  CD-ROM drive
9.  CD-ROM eject button
10.  CD-ROM emergency eject hole
11.  TrackPoint III
12.  Built-in speaker
13.  Palm rest
14.  Built-in microphone
15.  Fn Key
16.  Keyboard
17.  Fan louver
18.  Status indicator
19.  LCD panel
