| Index | FRU P/N |
|---|---|
| Top Cover Assembly | |
| 1 LCD Display | 33G4488 |
| 2 Brightness/Contrast Slides | 33G4200 |
| 3 LCD Bezel | 33G4197 |
| 4 Keyboard Cover | 33G4178 |
| 5 Keyboard | |
| Belgium | 33G9603 |
| Denmark | 33G9598 |
| Finland, Sweden | 33G9578 |
| French | 33G6028 |
| German | 33G6029 |
| Italian | 33G6027 |
| Latin America | 33G6031 |
| Netherlands | 33G9608 |
| Norway | 33G9583 |
| Portuguese | 33G9573 |
| Spanish | 33G6026 |
| Swiss (French) | 33G9593 |
| Swiss (German) | 33G9613 |
| U.K. | 33G6025 |
| U.S., Canada, Australia | 33G4492 |
| 6 Lid Switch | 33G4225 |
| 7 Left Hinge Asm | 33G4183 |
| 8 Backlight Lamp | 33G9586 |
| 9 Inverter Card | 33G4487 |
| 10 Right Hinge Asm | 33G6061 |
| 11 Top Cover Asm | 33G4189 |
| 12 Left Hinge Cover | 33G4201 |
| 13 Right Hinge Cover | 33G4202 |
| Miscellaneous Fastener Kit | 33G9588 |
| Base Assembly | |
| 1 I/O Card | 33G6008 |
| 2 I/O Cables | 33G4176 |
| 3 System Board | 33G4491 |
| 4 Modem Card (U.S. only) | |
| (Only for N82, S82, W82, E82) | 33G6010 |
| 5 Standby Battery | 33G4432 |
| 6 Diskette Drive Cable | 33G4162 |
| 7 Diskette Drive | 33G6024 |
| 8 Base Cover Asm | |
| with SIMM Door - Mod 182 | 33G4470 |
| 9 SIMM Door | 33G4170 |
| 10 Battery Pack Compartment Door | 33G4171 |
| 11 Hard Disk Drive | 95F4750 |
| 12 Hard Disk Drive Cable | 33G4163 |
| 13 RTC Battery | 33G4417 |
| 14 Speaker Asm | 33G4418 |
| 15 Battery Terminal Cover | 33G4177 |
| 16 VGA Cable | 33G4175 |
| 17 Modem Port Cover | |
| (Model 128 only) | 33G6034 |
| Feet Kit | 33G9631 |
| I/O Door | 33G4172 |
| Miscellaneous | |

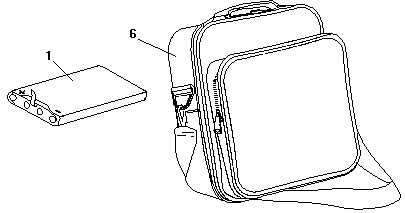

| 1 Battery Pack | 33G6023 |
| Power Cord | |
| U.S., Canadian | 13F9959 |
| Australia | 13F9939 |
| U.K. | 14F0033 |
| French, Spanish, German | 13F9979 |
| Italy | 14F0069 |
| Portugal, Finland, Norway | |
| Belgium, Netherlands | 14F9979 |
| Switzerland | 14F0051 |
| Denmark | 13F9997 |
| AD/DC Adapter | 33G6022 |
| Mouse | 33G6020 |
| Phone Cord with Splitter | 1057333 |
| 6 Carrying Case | 33G4255 |
| Car Adapter | 79F3990 |
| Software Diskettes | |
| U.S. | 33G9620 |
| Canadian | 33G9621 |
| Australian | 33G9622 |
