1040 Frame (2640)

•  Battery Pack

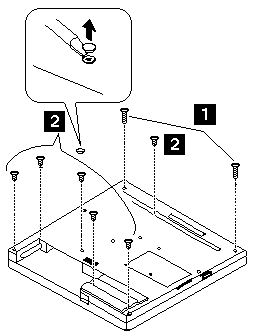

Step	Location (Quantity)	Length
1	Base Cover (2)	12 mm
2	Base Cover (6)	6 mm

NOTE: Make sure you use the correct screw.




NOTE:

1.  Be careful not to remove the Esc key when you remove  the frame. If Esc key is removed, replace the key as shown.




2.  When replacing the frame, check wheter the click buttons of the TracPoint III can  be pressed correctly.
    If the frame is not in place, the click buttons do not work.
