1100 Diskette Drive
1100 Diskette Drive
1110 Hard Disk Drive

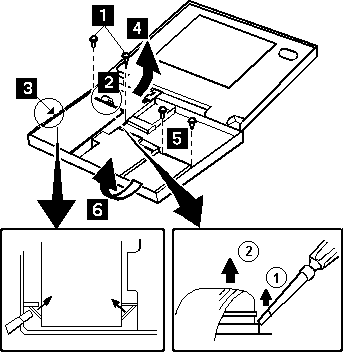

Steps 1, 2, 3, 4: Diskette Drive
Steps 5, 6: Hard Disk Drive
When Replacing
- Before removing the hard disk drive,
have the user make a backup copy of all
information on the hard disk
- Never remove the hard disk drive while the system is operating
or is in suspend mode.
- Do not pull the hard disk cable
The cable can be damaged if it is disconnected
without releasing the latch.
- Do not drop or apply any shock or extra force
to the hard disk drive or diskette drive.
They are sensitive to physical shock.
Use the following table for reference when replacing parts.
| Step |
Location (Quantity) |
Length |
| 1 |
Diskette Drive (2) |
8 mm |
| 5 |
Hard Disk Drive (2) |
6 mm |
NOTE: Make sure you use the correct screw. Screw Size Chart
