Palm Rest

Dell™ Latitude™ D800 Service Manual

CAUTION: Before performing the following procedures, read the safety instructions in your System Information Guide.

NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such as the back panel) on the computer.

1. Follow the instructions in "Preparing to Work Inside the Computer."


2. Remove the keyboard.



NOTICE: You must remove the display assembly before you remove the palm rest; the display hinges pass through the back of the palm rest.

3. Remove the display assembly.


4. Remove the mircoprocesser thermal-cooling assembly.


5. Remove the video card.

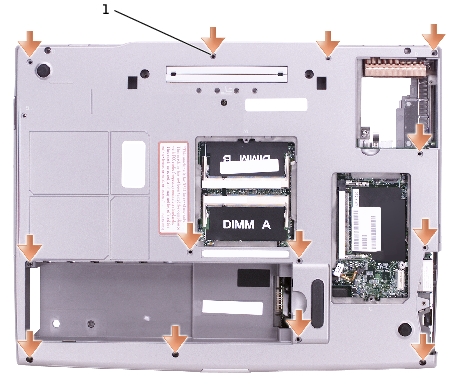

6. Remove the 13 M2.5 x 12-mm screws from the bottom of the computer.



1	M2.5 x 12-mm screws (13)

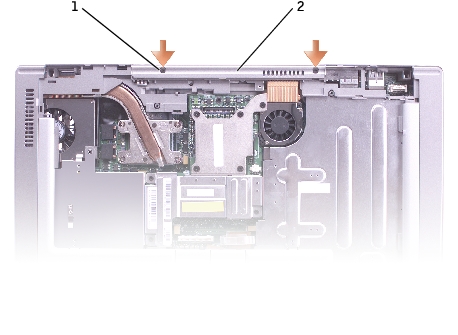

7. Remove the two M2.5 x 4-mm screws from the top of the palm rest.



1	M2.5 x 4-mm screws (2)
2	top of the palm rest

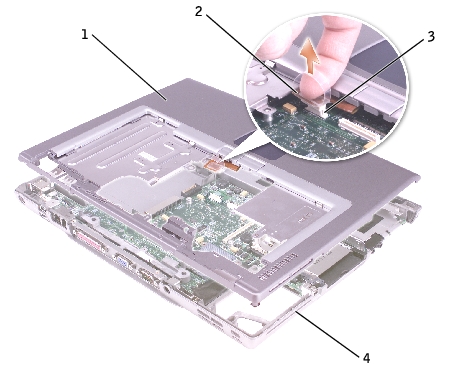

8. Disconnect the touch pad connector from the system board.



1	back center of the palm rest
2	touch pad connector
3	system board connector
4	computer base

NOTICE: Carefully separate the palm rest from the computer base to avoid damage to the palm rest.

9. Use your fingers to separate the palm rest from the computer base.
