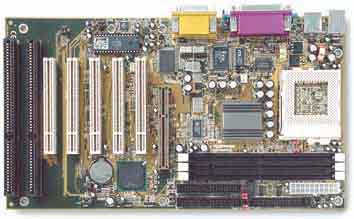

Processor
- Intel® Pentium® III / Celeron® (66/100Mhz Front Side Bus)
(PGA 370 Type).
- 233/266/300/333/350/366/400/433/450/466/500/533/550/600/650/667/700MHz
or above.
Chip Set
- Intel® 440BX (BXAS3-C931)
/ Intel® 440ZX (ZXAS3-C937)
BIOS
- 2M Flash EPROM (Support PnP, APM, ACPI,
ATAPI, DMI).
- IDE AUTO LBA Mode Supports HDDs over 8.4GB.
- Anti-Virus Protection.
- Trend Micro ChipAway Virus Protection.
Cache
- L2 Cache is CPU Built-in.
Memory
- Size up to 384MB (BXAS3-C931) / Up to 256MB (ZXAS3-C937).
- Three 168-pins DIMMs (BXAS3-C931) / Two 168-pins DIMMs (ZXAS3-C937).
- DIMMs Depth of 1MB, 2MB, 4MB, 8MB, 16MB and 32MB.
On Board
I/O
- Support Two PCI Enhanced IDEs PIO Mode 3, Mode
4 and Ultra DMA 33
Channels. Twin Headers for Four IDE Devices
Including IDE HDDs and CD ROMs.
- Support Two FDDs of 360KB, 720KB, 1.2MB, 1.44MB or 2.88MB.
- One ECP/EPP Parallel Port, Two 16550A UART Serial Ports,
Two USB Ports,
PS/2 Mouse Port, PS/2 Keyboard Port.
On Board Sound (Optional)
- Creative ES1373 PCI Sound Chip.
- PnP, Creative 3D Enhancement, Wave Synth Wave Table.
- Full-Duplex, Sound Blaster 16 Compatible.
- Line-in, Line-out, Mic-in and MIDI/Game Port.
Expansion Slots
- Two ISA Bus Slots (One PCI Shared Slot).
- Five PCI Bus Slots(BXAS3-C931) / Four PCI Bus Slots (ZXAS3-C937).
- One Accelerated Graphics Port (AGP).
Plug and Play
- Plug and Play Specification
1.1.
- Plug and Play for DOS®, Windows® 3.x, and Windows®
95.
PC97/98
- PC97/98 Ready, PC99 Color
Connector.
Power Management
- Support
SMM, APM and ACPI.
- Comply to Energy Star “Green PC” Program.
- Supports WAKE-ON-LAN (WOL).
- Supports Modem Ring-in Wake Up.
PCI
- PCI 2.1 Compliant.
AGP
- AGP 1.0
VRM
- On Board VRM 8.4.
Battery
- On-board Lithium Battery.
Others
- CPU Frequency Multiplier Jumperless (optional).
- Alarm Wake-up.
- Bundle "PC-cillin 6" Anti Virus Software.
Board Size
- 173mm x 305mm, ATX Form Factor.
|
