BCM 540/541 Motherboard Video Memory Upgrade

The system comes with 1 MB of on-board video DRAM, upgradeable to 2 MB. The standard 1 MB DRAM consists of two 256K by 16 DRAM devices soldered to the system board. The optional 1 MB of DRAM consists of two 256 KB by 16 modules that install in two sockets on the system board.

The video memory is upgradable to 2MB using OP-410-15501.

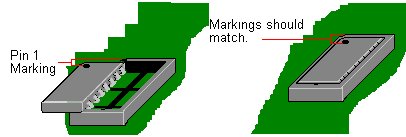

Chip Insertion

Document Information
KBID# 058621, Last Reviewed: November 11, 1999
