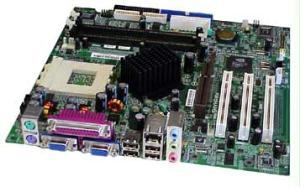

SKYHAWK-L

Supported Processors:
AthlonXP/Duron/Sempron Processors
Upto AthlonXP/Sempron 3200+
Bus:
Socket A - 266/333MHz FSB
Chipset:
NVIDIA nForce2 GT Chipset
Memory:
Two Total DDR DIMM Slots
Upto 2GB PC1600/PC2100/PC2700
Video:
Onboard Integrated Dual Video nVidia NForce2
GeForce4 Plus (1.5v 4x/8x) AGP Slot
Audio:
Onboard Integrated Direct Sound AC'97 audio - 3 audio (Line-In/Line-Out/Mic) ports
Expansion:
3 PCI Slots
1 AGP Slot
Part Number(s):
322122-001
305937-XXX



Additional Images:
None


Found in the following systems:
HP/Compaq - HP Compaq Business Desktop DX6050 Microtower, HP Desktop D325 Slim Tower, HP Desktop d325 MT


Maintenance and Service Guide:
http://h18000.www1.hp.com/products/quickspecs/12177_div/12177_div.HTML


Retail Board:
This is said to be an OEM FIC motherboard.
There is no retail information availible


Notes:
The bios program has been altered to a Compaq/HP specific version. It is not recommended to flash back to the original. If anyone does this successfully please notify us by email.
