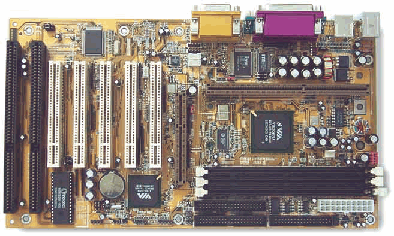

Model: AM-906

VIA® Apollo Pro 133 Chipset ATX Motherboard


BIOS_Upgrade_

Technical Specifications

Processor
  - Intel® Pentium® II/III & Celeron® (66/100/133Mhz Front Side Bus) .
  - 233/266/300/333/350/366/400/433/450/466/500MHz or above.
Chip Set
   - VIA® Apollo PRO133 (596B + 693A).
BIOS
   -  2M Flash EPROM (Support PnP, APM, ACPI, ATAPI, DMI).
  - IDE AUTO LBA Mode Supports HDDs over 8.4GB.
  - Anti-Virus Protection.
  - Trend Micro ChipAway Virus Protection.
Cache

     - L2 Cache is CPU Built-in.
Memory
  - Size up to 768MB.
  - Three 168-pins DIMMs.
  - DIMMs Depth of 1MB, 2MB, 4MB, 8MB, 16MB and 32MB.
     On Board I/O
   - Support Two PCI Enhanced IDEs PIO Mode 3, Mode 4 and Ultra DMA 33
    Channels   (Optional Ultra DMA 66 & Ultra DMA 66 Cable). Twin Headers for Four
    IDE Devices   Including IDE HDDs and CDROMs.
  - Support Two FDDs of 360KB, 720KB, 1.2MB, 1.44MB or 2.88MB.
  - One ECP/EPP Parallel Port, Two 16550A UART Serial Ports, Two USB Ports,
    PS/2 Mouse Port, PS/2 Keyboard Port,
On Board Sound (Optional)

- Creative ES1373 PCI Sound Chip.
  -  PnP, Creative 3D Enhancement, Wave Synth Wave Table.
  -  Full-Duplex, Sound Blaster 16 Compatible.
  -  Line-in, Line-out, Mic-in and MIDI/Game Port.
Expansion Slots
- Two ISA Bus Slots (One PCI Shared Slot).
  - Five PCI Bus Slots.
  - One Accelerated Graphics Port (AGP).
Plug and Play
   - Plug and Play Specification 1.1.
   - Plug and Play for DOS®, Windows®  3.x, and Windows® 95.
PC97/98
   - PC97/98 Ready, PC99 Color Connector.
Power Management
        - Support SMM, APM and ACPI.
  - Comply to Energy Star “Green PC” Program.
  - Supports WAKE-ON-LAN (WOL).
  - Supports Modem Ring-in Wake Up.
PCI
   - PCI 2.1 Compliant.
AGP
  - AGP V1.0
VRM
   - On Board VRM 8.2.
Battery
   - On-board Lithium Battery.
Others

  - CPU Frequency Multiplier Jumperless (Optional).
  - Alarm Wake-up
Board Size
     - 173mm x 305mm, ATX Form Factor.
